Spatiotemporal patterns of sediment deposition on the northern slope of the South China Sea in the last 150,000 years


The source-to-sink system of the northern South China Sea (SCS) has been widely discussed during the past few decades. Sr–Nd isotope, clay minerals and trace elements were extensively used as the proxies of sediment provenance, however, still little is known about the transport processes and controlling mechanisms on detailed spatiotemporal scales due to the limitations of these methods. Here we put forward the new provenance proxies RAK and RKCN based on major element compositions to study the spatiotemporal changes in sediment provenance since 150 ka mainly from four sites, DLW3101, MD12-3429, ZHS-176 and MD12-3432, which are located on the northern SCS continental slope. Our results show that, spatially, the pathways and intensities of contour currents and gravity flows play important roles in sediment transport. For alongslope processes, the South China Sea Branch of Kuroshio Current (SCSBKC) and the Deep Water Current (DWC) transport sediments from southwestern Taiwan, while the Intermediate Water Current (IWC) can carry sediments from Hainan, the Red River or the Indochina Peninsula. For downslope processes, gravity flows transport materials from the Pearl River delta and shelf to the slope. Moreover, seafloor bathymetry influences sediment transport by altering the pathways of ocean currents. Temporally, the impacts of sea level and monsoon rainfall fluctuations are always superimposed over the last 150 ka. Sea level fluctuations could significantly change the distance from the Pearl River estuary to the slope, while variations in the East Asian summer monsoon (EASM) rainfall would affect continental erosion rates in the source regions.

1 Introduction

The South China Sea (SCS) is an excellent case setting for fluvial sediment source-to-sink transport process studies (Liu et al. 2016). Nearly 7 × 108 metric tons of sediments are deposited in the SCS every year, of which approximately 80% come from surrounding rivers, such as the Pearl River and rivers in southwestern Taiwan and Luzon (Huang and Wang 2006; Liu et al. 2008, 2016). The Pearl River contributes approximately 80 Mt/a of fluvial sediments to the SCS (Fig. 1) (Milliman and Farnsworth 2011), mostly deposited on the inner shelf between the Pearl River mouth and Hainan (Fig. 1) (Liu et al. 2013; Wang et al. 2013; Ge et al. 2014). Luzon-sourced sediments (~ 11 Mt/a) (Milliman and Farnsworth 2011) generally accumulate northwest of Luzon (Fig. 1) (Liu et al. 2011). Meanwhile, southwestern Taiwan supplies ~ 70 Mt/a sediments to the northern SCS (Fig. 1) (Milliman and Farnsworth 2011), transported westwards by contour currents (Wan et al. 2010a; Hu et al. 2016; Liu et al. 2017).

Fig. 1
figure 1

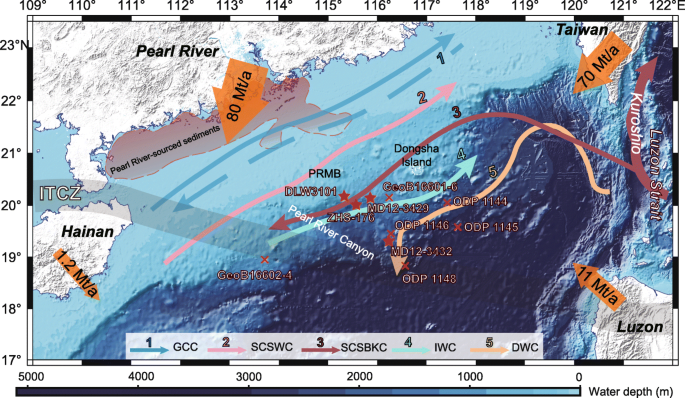

Bathymetric map and the locations of the sites referred to in this study. The study sites DLW3101, MD12-3429, ZHS-176 and MD12-3432 are marked with red pentagrams. The locations of other sites discussed in the text are also indicated, including GeoB16602-4 and GeoB16601-6 (Liu et al. 2017), and Ocean Drilling Program (ODP) sites 1144, 1145, 1146 and 1148 (Boulay et al. 2005; Wei et al. 2006; Shao et al. 2007; Wan et al. 2010a). The annual sediment discharges of potential sources are indicated by orange arrows (Milliman and Farnsworth 2011). Red shaded area depicts the dispersal of Pearl River-sourced sediments in the Holocene (Ge et al. 2014). Gray ribbon shows the location of the Intertropical Convergence Zone (ITCZ) (Clift 2006). 1: Guangdong Coastal Current (GCC, blue arrow and blue dashed arrow, from Liu et al. 2010); 2: South China Sea Warm Current (SCSWC, pink arrow, from Wang et al. 2010, and Liu et al. 2011); 3: South China Sea Branch of Kuroshio Current (SCSBKC, crimson arrow, from Qiu et al. 2011, Luan et al. 2012, and Nan et al. 2015); 4: Intermediate Water Current (IWC, cyan arrow, from Wang et al. 2013); 5: Deep Water Current (DWC, almond arrow, from Shao et al. 2007). PRMB: Pearl River Mouth Basin; Mt: million metric tons

The various source-to-sink processes contribute to different clay mineralogical and geochemical characteristics, due to the diverse material compositions of the fluvial sediments around the SCS (Liu et al. 2016). The sediment provenance change has been discussed by many different proxies, such as Sr-Nd isotope, trace elements and clay minerals (Shao et al. 2008; Hu et al. 2012; Wei et al. 2012; Liu et al. 2016). Based on clay minerals, Liu et al. (2017) found that site GeoB16602-4 (water depth: 970 m) on the west side of the Pearl River Mouth Basin (PRMB) (Fig. 1) received more detrital materials from the Pearl River during the Last Glacial Period (LGP), whereas site GeoB16601-6 (water depth: 1012 m) on the east side (Fig. 1) always got a higher fraction of detrital materials from Taiwan both in glacial and interglacial. Below the lower slope, the clay mineral assemblages at Ocean Drilling Program (ODP) site 1145 (water depth: 3175 m) show no significant variation during glacial–interglacial cycles (Boulay et al. 2005), in contrast to those at MD12-3432 (water depth: 2125 m) and ODP site 1146 (water depth: 2092 m), where the influence of the Pearl River input enhanced during glacials (Liu et al. 2003a; Chen et al. 2017a).

Previous studies were often limited to individual sites or specific depth ranges on glacial–interglacial cycles (Liu et al. 2003a, 2017; Huang et al. 2016; Chen et al. 2017a), and little is known about what happens on other timescales and larger spatial ranges. Otherwise, information on provenance changes contained in major element compositions has hardly been exploited. Since the εNd values of modern Taiwan (Chen and Lee 1990; Lan et al. 2002), modern Pear River drainage basin sediments (Liu et al. 2007) and Holocene Pearl River estuary (Hu et al. 2013) are similar, the differences in clay mineral contents can only illustrate the fine-grained portion, and the trace elements can be easily altered by diagenesis or biochemical processes (Tribovillard et al. 2006), a critical synthesis of provenance proxies derived from major element data is desperately needed.

In this study, we generate major element and clay mineral data mainly from four cores on the northern SCS slope encompassing the full depth range over the last 150 ka. Based on the major element compositions, we utilized the new proxies RAK and RKCN to indicate the provenance change on the whole slope. Besides, the Sr–Nd isotope, oxygen isotope of speleothem, grain size, insolation and global sea level data are also shown to identify the spatiotemporal changes in sediment provenance and transport processes, and discuss the controlling mechanisms.

2 Regional setting

The SCS is the largest marginal sea in the western Pacific, while the latitude range spans from 0° to 23°N. The temperature distribution of SCS largely follows the latitudinal zonality of climate at the Earth’s surface (Liu et al. 2016). The East Asian summer monsoon (EASM) controls seasonal precipitation around the SCS (Chen et al. 2017a), and the strongest rainfall region migrates together with the Intertropical Convergence Zone (ITCZ) (Fig. 1) (Clift 2020). The EASM is believed to have been stronger during interglacial (Wan et al. 2017), and the mean ITCZ shifts are likely less than 1° even during the Last Glacial Maximum (LGM) (McGee et al. 2014). In principle, the heavier rainfall is expected to have a major influence on the river run-off and denudation intensity around the source regions (Liu et al. 2003b; Zhong et al. 2017).

After entering the SCS, the sediment particles are transported both alongslope and downslope to the northern slope by currents (Zhong et al. 2017; Wang et al. 2018a). Along the slope, there are three contour currents at different water depths (Fig. 1): the westward South China Sea Branch of Kuroshio Current (SCSBKC, < 500 m) (Shaw and Chao 1994), the eastward Intermediate Water Current (IWC, 500–1500 m) (Zhu et al. 2010; Gong et al. 2013; Wang et al. 2013; Chen et al. 2014) and the westward Deep Water Current (DWC, > 2000 m) (Qu et al. 2006; Shao et al. 2007; Zhao et al. 2014). It is noteworthy that the depths of the interfaces between these currents vary spatiotemporally (Luan et al. 2012; Wang et al. 2018a), which can significantly change the sediment distributions. On the other hand, downslope gravity flows play an important role around the Pearl River Canyon (Fig. 1) (Wang et al. 2018a), where turbidite channels and gullies are possible conduits (Sun et al. 2016). In addition, the surface Guangdong Coastal Current (GCC) and South China Sea Warm Current (SCSWC) (Fig. 1) can influence the sediment distribution on the shelf (Cao et al. 2019).

3 Materials and methods

3.1 Materials and chronological framework

Four sites on the northern SCS slope with different water depths (585–2125 m) are utilized in this study. Marine sediment cores from sites DLW3101 (20°09.90′N, 115°21.30′E, water depth 585 m), MD12-3429 (20°08.52′N, 115°49.84′E, water depth 903 m) and MD12-3432 (19°16.88′N, 116°14.52′E, water depth 2125 m) were all collected on the continental slope of the northern SCS (Fig. 1). Site DLW3101 was cored in 2014 by Offshore Oil 708 (Zhou et al. 2018), and sites MD12-3429 and MD12-3432 were cored in 2012 by R.V. Marion Dufresne (Kissel et al. 2012). The sediments at these sites are homogenous and predominantly gray silts and clays (Kissel et al. 2012; Li et al. 2017; Zhou et al. 2018), and no obvious hiatus is found. A total of 122 samples were taken continuously at around 35 cm intervals from the upper 42.555 m of Core DLW3101 for element composition analysis, and 9 samples were taken from 30.490–40.010 m for mineral content analysis. Fifty samples were taken continuously at around 20 cm intervals from 10.055–19.855 m of site MD12-3429, and 100 samples were taken continuously at around 20 cm intervals from upper 18.405 m of Core MD12-3432 for element composition analysis. Besides, the elemental and mineral data of site ZHS-176 (20°00.07′N, 115°33.35′E, water depth 1383 m) are derived from Zhang et al. (2013) and Ge et al. (2010).

We reconstruct the age models of DLW3101 and MD12-3429 based on planktonic foraminiferal δ18O stratigraphy (Li et al. 2017; Zhou et al. 2018), and the age points of sites ZHS-176 (Ge et al. 2010; Zhang et al. 2013) and MD12-3432 (Chen et al. 2017b; Wang et al. 2018b) are also presented (Fig. 2a). The linear sedimentation rates (LSRs) of sites DLW3101, MD12-3429 and MD12-3432 are all higher during glacial periods (Fig. 2b), whereas the LSR of ZHS-176 is higher during the Holocene, and the average LSRs of sites DLW3101, MD12-3429, ZHS-176, MD12-3432 are approximately 33.55, 14.42, 24.44 and 14.44 cm/ka, respectively.

Fig. 2
figure 2

Age model of the study sites DWL3101, MD12-3429, ZHS-176 and MD12-3432. a Age models of sites DLW3101 and MD12-3429 based on the planktic δ18O data from Zhou et al. (2018) and Li et al. (2017); the age model of ZHS-176 is from Ge et al. 2010 and Zhang et al. 2013; and the age model of MD12-3432 is from Chen et al. (2017b) and Wang et al. (2018a); b Linear sedimentation rates (LSRs) of DLW3101, MD12-3429, ZHS-176 and MD12-3432. Gray bars highlight glacial periods with marine isotope stages (MIS) noted on the top

3.2 Analytical methods

Detrital silicates in sediments were extracted following a sequential leaching procedure, and the major elements were measured on a Spectro Blue Sop inductively coupled plasma-optical emission (ICP-OES) at Peking University. The extraction procedure included five steps (Gonneea and Paytan 2006; Zhao et al. 2018). First, the water-soluble fractions were removed by rinsing with ultrapure water (Leleyter et al. 2012). Second, a CH3COONH4/CH3COOH buffer solution at pH 4.5 was added to remove carbonates at 60 °C for 48 h. Third, the organic matter was removed by 10% H2O2 at 60 °C for 1 h. Forth, the silicate residues were dissolved using a concentrated HF + HNO3 + HCl mixture on a hot plate at 150 °C for 24 h. Finally, samples were diluted with 2% HNO3 for major element measurement. The external reproducibility for the elements (Na, Mg, Al, K, Ca, P, and Ti) in silicate residues was ±5%.

Mineralogical compositions of bulk sediments were measured by X-ray diffraction (XRD). First, non-calcareous clay-sized (< 2 μm) particles were separated following pretreatment steps of air-drying, ethylene-glycol solvation for 24 h, and heating at 490 °C for 2 h (Liu et al. 2016). Clay minerals were identified according to the position of the (001) series of basal reflections on the three XRD diagrams, and the experiments were performed at the State Key Laboratory of Marine Geology, Tongji University. Replicate analyses of selected samples gave a precision of ±2% (2σ), and the semiquantitative evaluation of each clay mineral had an accuracy of ~ 5%.

4 Results

4.1 Major element compositions

Major element compositions at sites DLW3101, MD12-3429 and MD12-3432 vary on glacial–interglacial cycles. At DLW3101, the concentrations of Al2O3, K2O, P2O5, MgO and TiO2 are higher during marine isotope stage (MIS) 1 and 5 and lower during MIS 2–4 and MIS 6, whereas Na2O and CaO behave oppositely (Fig. 3). At MD12-3429, the concentrations of Al2O3, K2O, P2O5, MgO and TiO2 are higher during interglacials and lower during glacials. The concentrations of Na2O are higher in MIS 6 and lower in MIS 5, while CaO does not change significantly from 150 ka to 75 ka (Fig. 3). At MD12-3432, the changes in K2O, P2O5, MgO and TiO2 are similar to those in DLW3101, but Al2O3 is almost constant during 100–15 ka. Na2O and CaO are also similar to those in DLW3101 except for the much higher values during 30–22 ka (Fig. 3).

Fig. 3
figure 3

Major element compositions of the study sites DWL3101, MD12-3429 and MD12-3432. Al2O3, K2O, Na2O, CaO, P2O5, MgO and TiO2 concentrations of the silicate fractions from DLW3101, MD12-3429 and MD12-3432, with planktic foraminiferal oxygen isotopes data from DLW3101 (Zhou et al. 2018), MD12-3429 (Li et al. 2017) and MD12-3432 (Qu and Huang 2019). Gray bars highlight glacial periods with marine isotope stages (MIS) noted on the right

4.2 Clay mineral compositions

The assemblage of clay minerals in DLW3101 mainly consists of smectite (31%–51%) and illite (23%–38%) with minor chlorite (15%–22%) and kaolinite (6%–17%) (Fig. 4). Apart from the deglacial period, the most significant changes in mineral content during 145–110 ka are the increases in illite and chlorite, whereas the kaolinite percentage decreases. The illite crystallinity shows a higher value of 0.18 during 145–140 ka and a lower value of 0.15 during 125–110 ka, suggesting the occurrence of relatively unaltered illites during MIS 5. The illite chemical index is also higher during MIS 6. In addition, the smectite/(illite + chlorite) ratio decreases from 0.9 during MIS 6 to 0.7 during MIS 5, while the kaolinite/(illite + chlorite) ratio reveals a more significant decreasing trend from 0.4 to 0.2 during 145–110 ka (Fig. 4).

Fig. 4
figure 4

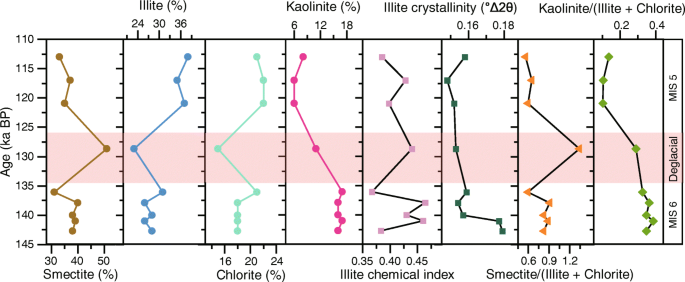

Variations in clay mineral assemblage, illite chemical index, illite crystallinity, smectite/(illite + chlorite) and kaolinite/(illite + chlorite) from site DLW3101. The pink bar highlights the deglacial period. MIS: Marine isotope stage

5 Discussion

5.1 Proxies of sediment provenance

The sediment provenance proxies we proposed here are RAK and RKCN, which are derived by the chemical index of alteration (CIA) based on major element contents. The CIA is defined as Al2O3/(Al2O3 + CaO* + Na2O + K2O) × 100 by using molar percentages of the major element oxides, where CaO* represents the CaO in the silicate fraction (Nesbitt and Young 1982). In general, the chemical leaching conditions of mobile alkali and alkaline elements can be visualized using weathering trend plots, such as the Al2O3–(CaO* + Na2O)–K2O (A–CN–K) ternary diagram (Fig. 5) (Nesbitt and Young 1984, 1989; Fedo et al. 1995). Sediments on the northern SCS slope are mainly sourced from the Pearl River, Taiwan and Luzon at the modern time (Liu et al. 2017), so we plot the terrestrial samples (< 63 μm) (Liu et al. 2016) from these three regions on the A–CN–K diagram (Fig. 5). It is noteworthy that not only the weathering intensities are not overlapped, but also the weathering trends are distinct for the three regions (Fig. 5).

Fig. 5
figure 5

Variations of the weathering trends of the source regions and the calculations of RAK, RACN and RKCN. Major elemental Al2O3–(CaO* + Na2O)–K2O (A–CN–K) diagram of bulk and clay-fraction sediments in a surrounding fluvial drainage systems (modified from Liu et al. 2016), b sites DLW3101, MD12-3429, ZHS-176, MD12-3432, as well as c ODP sites 1144 (Wei et al. 2003), 1146 (Wan et al. 2010b) and 1148 (Wei et al. 2006). CaO* represents the CaO in the silicate fraction (Nesbitt and Young 1982). The three sectors (I, II and III) in (a) represent the ranges of weathering trends. And the diagram presents the calculated positive and negative values of RAK, RACN and RKCN in the three regions. RAK, RACN and RKCN are the correlation coefficients between the chemical index of alteration (CIA), K* and CN*. CIA = Al2O3/(Al2O3 + CaO* + Na2O + K2O) × 100; K* = K2O/(Al2O3 + CaO* + Na2O + K2O) × 100; CN* = (CaO* + Na2O)/(Al2O3 + CaO* + Na2O + K2O) × 100. RAK: Pearson’s r between CIA and K*; RACN: Pearson’s r between CIA and CN*; RKCN: Pearson’s r between K* and CN*. The range of Pearl River samples (> 2.5 ka) is estimated based on Hu et al. (2016). The black polylines show the weathering trends. UCC: Upper continental crust

Theoretically, the weathering trends can be divided into two steps due to the prior removal of Na2O and CaO relative to K2O (Nesbitt and Young 1984, 1989; Fedo et al. 1995), and these two steps of weathering can be observed in the samples from the three major sources (Fig. 5). Taiwan samples plot almost perpendicular to the A–K line (Fig. 5), which means that the leaching of CaO and Na2O is preferential while K2O is still fixed in the weathering products (e.g., illite) (Liu et al. 2016). Ultimately, the absence of intermediate-acid rocks and extremely strong physical erosion are the primary factors that prevent the leaching of K2O (Liu et al. 2016). In contrast, the Pearl River samples plot linearly and are nearly perpendicular to the K–CN line (Fig. 5), associating with the abundant kaolinite contents in the modern Pearl River basin and the Holocene estuary sediments (Hu et al. 2013; Liu et al. 2016). These pieces of evidence all suggest that the leaching of CaO and Na2O and the removal of K2O are simultaneously occurring in the sediments around the drainage basin. Luzon river samples plot linearly and parallel to the A–CN line (Fig. 5), indicating preferential leaching of CaO and Na2O as well as lacking K2O in the bedrocks (Liu et al. 2009).

Since the obvious differences exist in weathering trends between the Pearl River, Taiwan and Luzon islands, we can use these features to indicate provenance change once the weathering trend can be presented numerically. The weathering trends can be analyzed by correlation coefficients between CIA, K* and CN* (K* = K2O/(Al2O3 + CaO* + Na2O + K2O) × 100; CN* = (CaO* + Na2O)/(Al2O3 + CaO* + Na2O + K2O) × 100). The three sectors (Fig. 5a) represent the direction ranges of possible weathering trends. And the diagram presents the calculated positive and negative regions values of RAK, RACN and RKCN in the three regions (RAK: Pearson’s r between CIA and K*; RACN: Pearson’s r between CIA and CN*; RKCN: Pearson’s r between K* and CN*). The RACN values are negative all along, so it is useless for provenance tracking. The weathering trend of modern Taiwan locates in the sector I range, and the trend of modern Pearl River samples lies at the border between the sector II and III. The positive RAK only appears in sector III, while the positive RKCN can be worked out only in sector I (Fig. 5a). The value of RAK becomes more negative when K-feldspar breakdown proceeds rapidly, which means the leaching of K2O, while more positive RKCN values also signal more intense K-feldspar destruction (Fig. 5). We calculate these correlation coefficients of the surface sediments samples from the Pearl River, Taiwan and Luzon (Fig. 6) (Liu et al. 2016). It is noteworthy that the three potential sources show significant differences in RAK and RKCN values (Fig. 6). Because the Luzon input is low in our study area (Liu et al. 2011; Zhong et al. 2017) and the RAK, RACN and RKCN values between Luzon and Taiwan are relatively similar, we focus on the sediments that supply from the Pearl River and Taiwan. The RAK values of the Pearl River are strongly negative, whereas the RAK of Taiwan is strongly positive. The RKCN of the Pearl River is not significantly different from zero, while the RKCN of Taiwan is negative. As there is little difference in the RACN values between the Pearl River and Taiwan sources (Fig. 6), we consider the RAK and RKCN values to be more effective for revealing the provenance changes the history of the northern SCS.

Fig. 6
figure 6

The RAK, RACN and RKCN values of bulk sediments from Taiwan, the Pearl River and Luzon. p-values are all << 0.01 when |r| > 0.5 (here, p-value ≤0.05 is statistically significant, which means the correlation exists with high probability). See Fig. 5 for meanings of CIA, K*, CN*, RAK, RKCN and RKCN

Furthermore, we calculate the RAK and RKCN values of three ODP sites (Figs. 5c, 7). The results suggest that the sediments at ODP site 1144 (1–0 Ma) are mainly sourced from Taiwan, while those at ODP sites 1146 (19–8 Ma) and 1148 (19–8 Ma) are mainly sourced from the Pearl River (Fig. 7b). The conclusions draw by RAK and RKCN values are exactly matched with those previous results declared by clay mineral data (Fig. 7a) (Wan et al. 2010a), and the conclusions derived from sedimentary lithofacies and trace elements (Wei et al. 2012; Shao et al. 2019; Zhang et al. 2020) also support our results. Besides, the Sr–Nd isotope data also indicate the same condition (Fig. 7c) (Chen and Lee 1990; Clift et al. 2002, 2014; Lan et al. 2002; Zhou et al. 2002; Liu et al. 2007; Hu et al. 2012, 2013). However, the εNd values of Taiwan and the Pearl River are so similar, while the 87Sr/86Sr values are primarily controlled by chemical weathering (Fig. 7c) (Hu et al. 2012; Clift et al. 2014), and the influence of Taiwan after 5 Ma makes a simple weathering interpretation of the Sr isotope data impossible (Clift et al. 2014). Therefore, the application of Sr–Nd isotope in the northern SCS needs to be more cautious especially after Taiwan uplift.

Fig. 7
figure 7

The correlation between the new proxies RAK, RKCN and other provenance indictors. a Variation of (illite + chlorite)/kaolinite ratio (modified from Wan et al. 2010a) at ODP sites 1144 (Wan et al. 2010a), 1146 (Wan et al. 2007), and 1148 (Clift et al. 2002); b Changes in RAK and RKCN values of ODP sites 1144 (1–0 Ma), 1146 (19–8 Ma) and 1148 (19–8 Ma); p-values are almost all < 0.05 when |r| > 0.6; c Sr and Nd isotopic plot showing the variability in Holocene sediments from ODP site 1144 (Hu et al. 2012) and in Lower Miocene to recent sediments at ODP site 1148 (Clift et al. 2002, 2014) compared to modern potential sources (Chen and Lee 1990; Lan et al. 2002; Zhou et al. 2002; Liu et al. 2007; Hu et al. 2013) around the South China Sea (modified from Clift et al. 2014). The fill colors of the RAK line mark the relative distribution of Taiwan (red) and the Pearl River (blue). See Fig. 5 for meanings of RAK and RKCN

In addition, the p-values are < 0.05 just when |r| > 0.6, which means that the source indicative significance of RAK or RKCN is meaningful only under these conditions. Nevertheless, we cannot regard the r value as totally meaningless if p-values are > 0.05, when it is also a signal indicating a mixture of Taiwan and Pear River sediments. Fortunately, the p-values are always < 0.05 during most periods at the four study sites and ODP sites we referred to (Fig. 7b, 8). In summary, the RAK and RKCN we encouraged in this study are robust provenance proxies in the northern SCS.

Fig. 8
figure 8

The changes of RAK, RKCN values of the study sites (a) DLW3101, (b) MD12-3429, (c) ZHS-176 and (d) MD12-3432. p-values are almost all < 0.05 when |r| > 0.6; e Chinese cave δ18O (Cheng et al. 2016) and mid-month July insolation at 15°N (Berger and Loutre 1991); f LR04 δ18O stack (Lisiecki and Raymo 2005) and global eustatic sea level (Spratt and Lisiecki 2016). The fill colors of the RAK line mark the relative distribution of Taiwan (red) and the Pearl River (blue). Gray bars highlight the intervals of maximum insolation. See Fig. 5 for meanings of RAK and RKCN

5.2 Spatiotemporal patterns of sediment deposition

We try to discuss the temporal variations in sediment provenance on the northern SCS slope based on the provenance proxies RAK and RKCN. The values of RAK and RKCN are calculated for every continuous 10 points of the data from sites DLW3101, MD12-3429 and MD12-3432. The sample quantities of site ZHS-176 is tenfold than other three sites per unit time, to guarantee a similar time interval during every calculation, we pick 30 points from site ZHS-176 for each compute. The upper continental slope is represented by sites DLW3101 and MD12-3429, while sites ZHS-176 and MD12-3432 represent the middle and lower slopes, respectively. In addition, we put forward the kaolinite/(illite + chlorite) ratio as an additional proxy for source identification, as kaolinite is mostly provided by the Pearl River, and illite and chlorite are mainly from Taiwan (Liu et al. 2016). Nevertheless, the contribution of the Pearl River since 2.5 ka can be overestimated because of the influence of anthropological activity (Hu et al. 2013).

The two sites DLW3101 and MD12-3429 on the upper slope show similar changes in the RAK values, which are more positive when the sea level is higher (Fig. 8a, b). During 127–115 ka, the positive RAK values at DLW3101 indicate higher sediment input from Taiwan, consistent with the lower kaolinite/(illite + chlorite) ratios and higher illite crystallinity values (Fig. 4), which are also signals of greater Taiwan input (Liu et al. 2016). During 145–135 ka and 25–18 ka, the strong negative RAK values suggest increases of the Pearl River input. Moreover, the CIA values are relatively high with the finer mean grain size of DLW3101 during interglacial periods, but the CIA values are even higher during glacial maxima with larger grain sizes (Fig. 9d). In addition, it is strange that the highest positive RAK occurred at early MIS 4, and we take the most possible reason is the lacking of samples during 77–67 ka at DLW3101.

Fig. 9
figure 9

The changes of material composition, grain size and chemical weathering proxies. The values of K/Al and CIA of the silicate fractions from (a) MD12-3432, (b) ZHS-176, (c) MD12-3429, and (d) DLW3101. The semi-transparent lines represent the original data, and the bold lines are 10-point running averages in (a), (c) and (d) and 50-point running averages in (b) and (f). The mean grain size (Mz) and clay mineral assemblage variations from (e) MD12-3432 (Chen et al. 2017a, b) and (f) ZHS-176 (Ge et al. 2010; Zhang et al. 2013). g The mean grain size (Mz) and sediment compositions in DLW3101 (modified from Zhou et al. 2018). See Fig. 5 for the meaning of CIA

At MD12-3429, the positive RAK values are present at approximately 130–82 ka together with the negative RKCN (Fig. 8b), indicating a higher Taiwan sediment input during the high sea level stage. The RAK values are negative during 145–130 ka, which represents a relatively higher sediment input from the Pearl River. In general, the upper slope receives more Taiwan sediment during high sea level stages and less in lowstands.

On the middle slope, given the strong negative values of RAK, there is no significant Taiwan sediment input over the last 30 ka at ZHS-176 (Fig. 8c). The illite crystallization values are always much higher than the Taiwan range (Ge et al. 2010), also suggesting a higher input from the Pearl River. Further, the kaolinite/(illite + chlorite) ratios (Fig. 9f) indicate that the Pearl River input is relatively higher during the low sea level stage.

On the lower slope, the RAK values at MD12-3432 are always negative during 110–10 ka (Fig. 8d), and the kaolinite percentages and CIA values are higher during glacial periods (Fig. 9a, e) (Chen et al. 2017a). These all suggest a higher sediment contribution from the Pearl River during 110–10 ka, even higher in glacials. By contrast, the RAK values reach a moderate positive level during 135–110 ka (Fig. 8d), indicating higher Taiwan sediment input during the high sea level stage.

5.3 Influencing factors on RAK and RKCN

Besides provenance change, there are still other factors can affect the values of RAK and RKCN such as hydraulic sorting and chemical weathering. However, the influences of these two factors on the new provenance proxies are weak in the northern SCS.

As for hydraulic sorting, in the source areas, the weathering trends of clay fractions (< 2 μm) of Taiwan and Luzon sediments do not show significant differences from bulk sediments (< 63 μm) (Fig. 5), indicating that the influences of hydraulic sorting on the weathering trends of the sediments from Taiwan and Luzon are negligible. For the sink regions, the weathering intensity inferred from the CIA and K/Al ratio is extremely high during MIS 2 and MIS 6 at DLW3101 with the largest grain sizes (Fig. 9d, g). The larger grain sizes are also coincident with more intense weathering at ZHS-176 since 14 ka (Ge et al. 2010; Zhang et al. 2013) (Fig. 9b, f). At MD12-3432, the higher mean grain size of the sortable silt is not always appearing at the same time with lower CIA or K/Al values (Fig. 9a). In total, the weathering intensity always rises with a larger grain size in these four sites. However, larger grain size should indicate weaker weathering (Xiong et al. 2010; Huang et al. 2011; Israeli and Emmanuel 2018; Hatano et al. 2019), because the more presence of quartz leads to the loss of weathering sensitive minerals, and the silt fraction may contain abundant micas which have lower CIA values than clays (Andrews et al. 2003). In other words, the grain size effect on weathering is not always conformed to the theory.

In the northern SCS, the only way that hydraulic sorting can influence the judgment by RAK and RKCN is winnowing fine-grained particles from the Pearl River, getting the weathering intensity down, finally pushing the weathering trends to Taiwan-type. Nevertheless, these procedures never happen as the weathering trends are always showing a K2O leaching type when grain size becomes larger. Thus, hydraulic sorting has little influence on the proxies RAK and RKCN at these four sites during the most time since 150 ka.

As for chemical weathering, firstly, the temporal variations of provenance proxies and weathering proxies are different in most cases (Fig. 9). That is because RAK and RKCN reflect the direction of weathering trend, while CIA and K/Al show the weathering intensity of the mixture sediment on the slope. Secondly, the periodicities of RAK and K/Al are more distinct than CIA (Fig. 10), because the weathering intensity of the mixture is influenced by weathering condition, hydraulic sorting and provenance change simultaneously, while the climate-related periodicities of these factors are asynchronous. On the other hand, the provenance change is mainly controlled by the climate in the northern SCS, especially sea level and rainfall, these will be discussed at length in the next section. Besides, potassium enriches in illite, which is the major component of Taiwan clay, so the K/Al ratio rather than the CIA is strongly influenced by provenance change.

Fig. 10
figure 10

Redfit spectral analyses of RAK, CIA and K/Al at (a, d, g) DLW3101, (b, e, h) MD12-3429, and (c, f, i) MD12-3432 using the PAST software (Hammer et al. 2001). The false alarm levels of 95% and 90% are illustrated by red solid and dashed lines, respectively. The characteristic periodicities are noted together with the spectra. Redfit is a spectral analysis program that can estimate red-noise spectra directly from unevenly spaced paleoclimatic time series (Schulz and Mudelsee 2002)

Otherwise, the weathering conditions of Taiwan and the Pearl River did not become significantly different during the LGP (Liu et al. 2016; Wan et al. 2017, 2020). During glacial lowstands, the unconsolidated shelf sediments near the Paleo-Pearl River are transported to the slope, where they would be subject to an even greater degree of weathering (Wan et al. 2017). And this would not change the weathering trend direction of the Pearl River region. For Taiwan, the chemical weathering is stable since the LGM, as it is limited by the extremely high physical erosion (Selvaraj and Chen 2006; Liu et al. 2016; Wan et al. 2020). The constant clay contents of the sites around Taiwan indicate the element compositions are unaltered. The weathering trend of Taiwan is suggested to be constant over the last 150 ka. Therefore, the modern surface samples we use from the Pearl River and Taiwan are suitable to represent the condition since 150 ka.

In general, hydraulic sorting and chemical weathering can influence the sediment composition, but these factors cannot change the weathering trends of sediments from Taiwan or the Pearl River thoroughly, so that the provenance proxies RAK and RKCN are independent of both hydraulic sorting and chemical weathering. After ruling out the impacts of chemical weathering in the source regions and hydraulic sorting during transport, we suggest that the provenance change can be revealed by RAK and RKCN more credibly in this study area since 150 ka.

5.4 Controlling mechanisms of sediment transport

As to the controlling mechanisms of provenance change in the northern SCS, based on the results recovered by RAK and RKCN, we suggest that the sediment provenance change on the northern SCS slope reflects the superimposition of the influences of sea level fluctuations and the East Asian summer monsoon (EASM) rainfall.

During high sea level stages, the influence of Taiwan sediment input is greater at DLW3101, MD12-3429 and MD12-3432 (Fig. 11a), while ZHS-176 shows no obvious signs of increasing Taiwan input during the whole Holocene (Fig. 8c). Most of the sediments are transported by contour currents during the high sea level stages (Fig. 11a) (Liu et al. 2017). Site ZHS-176 is located within the range of the Intermediate Water Current (IWC) (Wang et al. 2013; Sun et al. 2016; Zhao et al. 2015), which cannot carry sediments from Taiwan to the study area because of its NE flow direction. The Taiwan sediments are mainly carried by the South China Sea Branch of Kuroshio Current (SCSBKC) and Deep Water Current (DWC), while the IWC can transport sediments from Hainan, the Red River, or the Indochina Peninsula (Hu et al. 2014). In addition, most of the sediments from the Pearl River are trapped on the continental shelf during the highstands (Ge et al. 2014), therefore Taiwan input relatively increases together with heavier rainfall due to the stronger EASM and northward shift of the ITCZ (Fig. 11a).

Fig. 11
figure 11

Sediment depositional patterns during a high and b low sea level stages. The dispersal of Pearl River-sourced sediments depicted by red shaded area is wider in the glacial epochs based on our results and previous studies (Liu et al. 2016, 2017) than during the Holocene (Ge et al. 2014). The dispersal of Taiwan-sourced sediments represented by green shaded area is mainly located in the range of the SCSBKC and DWC based on our results and previous studies (Shao et al. 2007; Wan et al. 2010a; Liu et al. 2016). Gray ribbons show the locations of the ITCZ in glacial and modern times (McGee et al. 2014; Clift 2020) with the high precipitation zones noted by cloud icons. See Fig. 1 for all current systems

During low sea level stages, detrital materials at all these four sites are mainly derived from the Pearl River drainage area (Fig. 11b). When global sea level was lowered by ~ 120 m during glacial maxima at approximately 137 ka and 23 ka (Fig. 11b), the continental shelf around the South China margin was exposed, and the distance from the Pearl River mouth to the continental slope was significantly shorter than that during high sea level stages (Huang et al. 2011; Liu et al. 2017). Meanwhile, the ITCZ can be still located near the northern SCS shelf due to the slightly southward shift (Fig. 11b) (McGee et al. 2014), hence, the rainfall can be still strong around the shelf area in glacial maxima. The detrital materials on the exposed shelf and the sediments transported by the paleo-Pearl River can be transported in abundance by downslope gravity currents (Wang et al. 2018a). In addition, the shelf sediments are subject to even higher weathering during lowstands (Wan et al. 2017). Therefore, the relative contribution of eroded detrital material with negative RAK values from the Pearl River or exposed shelf would increase during sea level lowstands (Fig. 11b).

It is noteworthy that more positive RAK values at MD12-3429 are not always coincident with higher sea level, and the change in RAK is almost opposite to that at DLW3101 during 120–82 ka (Fig. 8). Given their adjacent locations, the changes in downslope transport would affect DLW3101 and MD12-3429 similarly, so the most likely explanation would be the differences in alongslope transportation. The depth ranges of contour currents fluctuate together with sea level and seasonal change (Zhao et al. 2015; Wang et al. 2018a). The bottom boundary of the contour current SCSBKC, which carries Taiwan-sourced sediments westwards to the study area, is at ~ 420 m water depth around the top of the Pearl River Canyon (Wang et al. 2018a) and ~ 800 m water depth at the eastern end of Dongsha Island (Luan et al. 2012), so its depth can be deeper on the eastern side of the Pearl River Canyon due to the deeper seafloor. These indicate that MD12-3429 is located beneath the boundary between the westward SCSBKC and the eastward IWC, while DLW3101 is located in the center range of the SCSBKC. In this case, the Taiwan sediments carried by the SCSBKC may increase at DLW3101 but decrease at MD12-3429 because the sea level rise will shift the SCSBKC–IWC boundary upwards.

Temporal variations in RAK at DLW3101, MD12-3429 and MD12-3432 can present the orbital changes in sea level and the EASM (Fig. 10). The precession and semi-precession periodicities are identified in RAK values at all three sites with sufficient long records (Fig. 10). The obliquity cycles at the shallowest site DLW3101 (Fig. 10a) are most likely linked to sea level fluctuations, because the variance of global ice volume change during the Pleistocene is concentrated in the obliquity band (Huybers 2006). The precession cycles are mainly related to the EASM rainfall, which is driven by summer insolation (Huang et al. 2011). The rainfall strength variations can be indicated by oxygen isotope records from stalagmites in East and South China (Fig. 8e) (Cheng et al. 2016). Furthermore, a strong EASM is always accompanied by a warm and humid climate, which tends to enhance the river denudation rate in the Pearl River delta and Taiwan (Tamburini et al. 2003; Chen et al. 2017a).

The superposition of monsoonal and sea level changes leads to diverse patterns of sediment provenance change. On the one hand, the delivery of the Pearl River sediments to the northern SCS slope is most favoredunder the scenario of a stronger EASM and low sea level stand in other words, the combined effects of a greater denudation rate and shorter transport distance (Fig. 11b). For example, during the high rainfall periods around 57 ka and 31 ka, the Pearl River input is all great at DLW3101 and MD12-3432 indicated by the negative RAK values (Fig. 8a, d). On the other hand, Taiwan input is enhanced most in the presence of a stronger EASM and high sea level stand, which leads to greater erosion in Taiwan together with a stronger SCSBKC (Jiang et al. 2006). For instance, the positive RAK values indicate greater Taiwan input during MIS 5 at DLW3101 and MD12-3429 (Fig. 8).

In addition to sea level and monsoon rainfall, local bathymetry is another essential factor controlling sediment transport pathways on the northern SCS slope, especially at MD12-3432. Sediments from ODP sites 1146 and 1148 since 3 Ma are mainly derived from Taiwan (Wan et al. 2010a), but sediments from MD12-3432 show more similarities to the Pearl River samples (Fig. 5), although these sites are located at similar water depths and locations. The possible reason is that MD12-3432 and ODP site 1146 are respectively located on the western and eastern slopes of a ridge, which is the eastern border of the Pearl River Canyon and reaches a depth shallower than 2000 m (Fig. 11b). The boundary between the eastward IWC and the westward DWC may reach approximately 2000 m (Zhao et al. 2015), so the ridge may block the material from Taiwan in the east carried by the DWC. Meanwhile, the sediments from the Pearl River or continent shelf can be transported downslope to the west side of the ridge through the canyon system (Shanmugam 2006) (Fig. 11b). Furthermore, the exceptions appear at approximately 6–1 ka and 135–110 ka, when high sea level stands meet the strong summer monsoon, producing a more favored condition for Taiwan input at MD12-3432 (Fig. 8d), as the IWC–DWC interface may rise during MIS 5 and the late Holocene.

6 Conclusions

Based on the geochemical and clay mineralogical analyses of the continental slope sediments from the northern SCS, several conclusions can be drawn concerning the sediment depositional patterns over the past 150 ka in the northern SCS.

  1. 1)

    The element and mineral compositions are strongly influenced by provenance changes on the northern SCS slope. Due to the significant differences in weathering trends between the Pearl River and Taiwan sediment sources, the correlation coefficients RAK and RKCN between the endmembers on the A–CN–K diagram can be useful proxies for provenance tracing, since they are independent of hydraulic sorting and chemical weathering impacts.

  2. 2)

    The element and clay mineral analyses reveal that the four sites (DLW3101, MD12-3429, ZHS-176, and MD12-3432) encompassing the upper to lower slope ranges experienced similar depositional patterns during low sea level stages at approximately 137 ka and 23 ka, when most of the detrital materials were supplied by the Paleo-Pearl River drainage system through gravity flows; during the high sea level stage at approximately 123 ka, the sediments were mainly supplied from Taiwan by the contour currents SCSBKC and DWC to the upper and lower slopes, respectively. And the Taiwan input was insignificant on the middle slope in the range of the contour current IWC.

  3. 3)

    Sea level and the EASM rainfall are the two major factors controlling sediment transport processes since 150 ka. The sea level fluctuations can significantly influence the transport distance of sediments from South China and the boundaries of contour currents, while the EASM rainfall strongly alters the erosion rates in terrestrial source regions. Besides, local bathymetry may be another essential factor affecting sediment deposition due to its impact on contour current flow direction.

Availability of data and materials

The data analyzed during the current study are available in the PANGAEA repository,



Before present


Chemical index of alteration


Deep Water Current


East Asian summer monsoon


Guangdong Coastal Current


Inductively coupled plasma-optical emission


Intertropical Convergence Zone


Intermediate Water Current


Last Glacial Period


Last Glacial Maximum


Linear sedimentation rates


Marine isotope stage


Million metric tons


Mean grain size


Pearl River Mouth Basin


South China Sea


South China Sea Branch of Kuroshio Current


South China Sea Warm Current


X-ray diffraction
